Novastar CVT4K-M Fiber Converter
For more information, pls contact us at jane@summled.com or Whatsapp +86 15985829118
Description
The CVT4K-M is a high-performance fiber converter developed by NovaStar. It is used for conversion between optical signals and electrical signals, allowing for long-distance signal transmission that is stable and not easily interfered with. Easy to use, the CVT4K-M makes it convenient to connect terminal devices and simplifies on-site wiring connections.
Features:

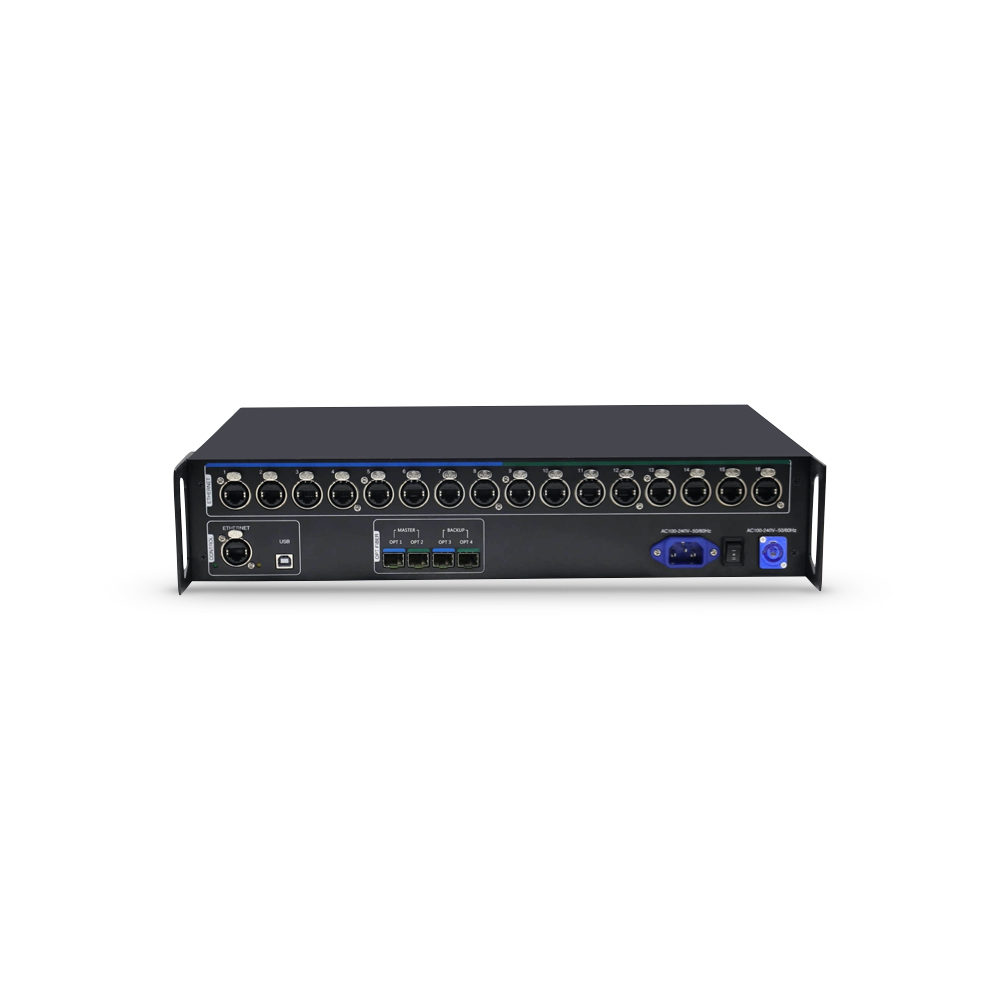

- 16x Neutrik Ethernet inputs or outputs
- 4x Multi-mode twin-core LC optical ports, two as master inputs or outputs and the others as backup
- Dual redundant power supplies, more stable and reliable
- 2 types of power connectors (3-pin power socket and PowerCON), satisfying different customer needs
- 2 types of control ports (type-B USB and Ethernet), more flexible and convenient to connect a control computer

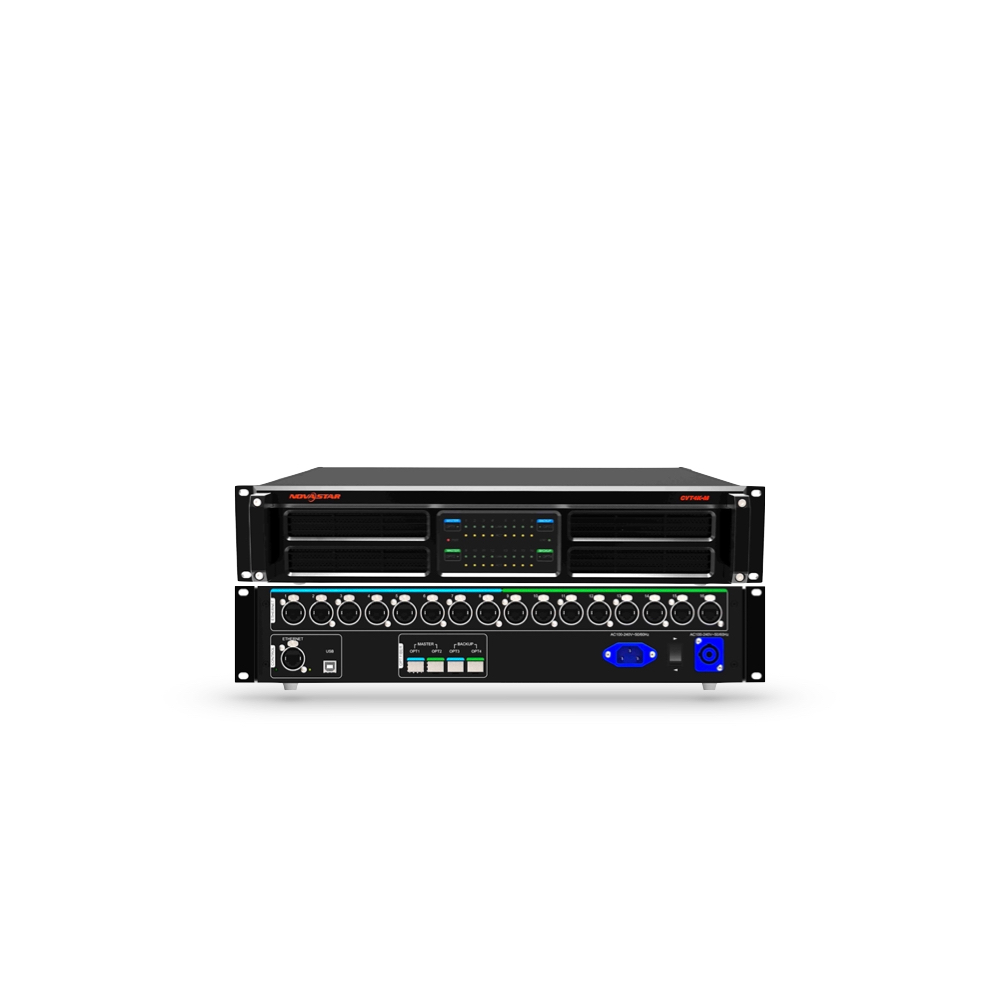

- Various indicators on the front panel show the device status clearly
Specifications:
Electrical Specifications
– Input voltage: AC 100 V to 240 V
– Rated power consumption: 10 W
Operating Environment
– Temperature: –20°C to +60°C
– Humidity: 10% RH to 90% RH, non-condensing
Storage Environment
– Temperature: –20°C to +70°C
Physical
– Dimensions: 482.6 mm × 377.0 mm × 96.0 mm Specifications
– Net weight 4.6 kg
Packing Information
– Carrying case: 530.0 mm × 193.0 mm × 420.0 mm, white cardboard box
– Accessory box: 405.0 mm × 290.0 mm × 48.0 mm, white cardboard box. Accessories: 1x Power cord, 1x Ethernet cable, 1x USB cable, 12x M4*10 screws
– Packing box: 550.0 mm × 440.0 mm × 210.0 mm, craft paper box
